Vishay / BC Components AY2 Series AC Rated Safety Capacitors

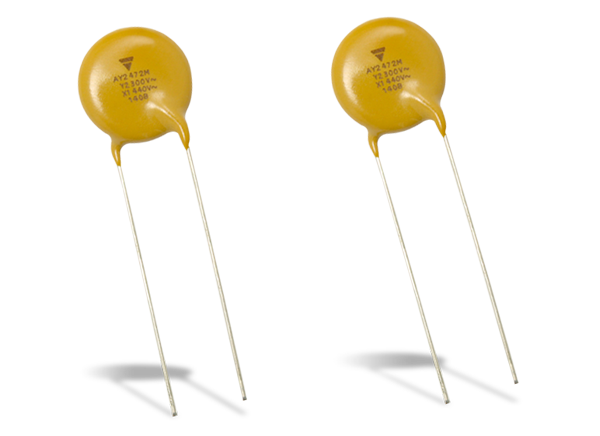

Vishay AY2 Series AC Rated Safety Capacitors are AEC-Q200 qualified and designed to provide high reliability for Class X1 (440V_AC) and Y2 (300V_AC) automotive applications in accordance with IEC 60384-14.3, 3rd edition. Featuring U2J, Y5S, and Y5U ceramic dielectrics, the AY2 series is optimized for on-board chargers and battery management in electric cars and plug-in hybrid electric vehicles (PHEV), in addition to high-reliability industrial applications. The capacitors offer a capacitance range from 10pF to 4700pF with tolerances down to ±10% over a temperature range of -55°C to +125°C.

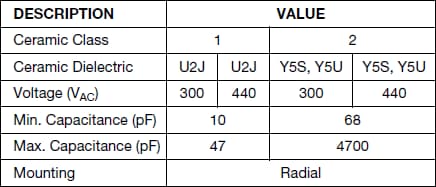

AY2 Sample Kit

The AY2 Sample Kit contains a total of 7 capacitance values from 100pF to 4700pF, with 10 pieces each.

Kit Datasheet

Features

AEC-Q200 qualified
Withstands 85 / 85 / 1000h test
Can pass 3000 temperature cycles (from -55°C to +125°C)
Complying with IEC 60384-14 4th edition

High reliability
Vertical (inline) kinked or straight leads
Single-layer AC disc safety capacitors
PPAP (AIAG version) is available

Applications

X1, Y2 according to IEC 60384-14.3
Application as Y capacitors for AC line filter and primary-secondary coupling on battery chargers for PHEV/EV
Application as a filter capacitors on DC/DC converters for PHEV/EV and HEV
