Vishay / BC Components 170 RVZ Radial Aluminum Electrolytic Capacitors

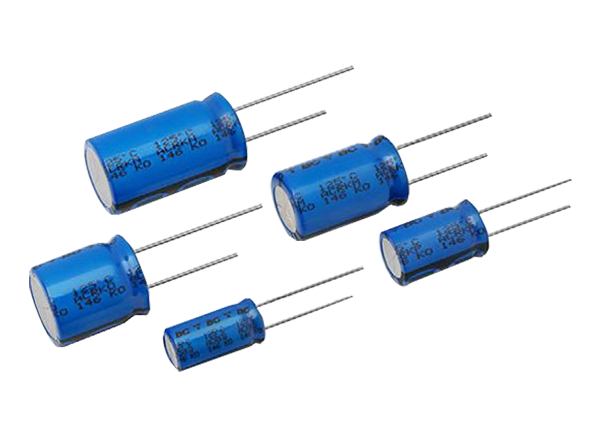

Vishay BC Components 170 RVZ Radial Aluminum Electrolytic Capacitors are miniature, low-impedance polarized aluminum electrolytic capacitors with a non-solid electrolyte. The 170 RVZ capacitors offer very low impedance, low ESR, high stability, high reliability, and high ripple current capability in smaller case sizes than the 150 RMI series capacitors. These charge and discharge-proof capacitors are AEC-Q200 qualified (automotive grade) and operate in a -40°C to +105°C temperature range. The 170 RVZ capacitors are ideal for smoothing, filtering, and buffing applications and power supplies for industrial, EDP, audio-video, automotive, and telecommunications.
Features
- Very low impedance
- Low ESR
- Excellent ripple current capability
- AEC-Q200 qualified
- Radial leads
- RoHS compliant
- Polarized aluminum electrolytic capacitors, non-solid electrolyte
- Cylindrical aluminum case with pressure relief, insulated with a blue sleeve
- Charge and discharge proof
Specifications
- 10mm x 12mm up to 18mm x 40mm nominal case sizes (øD x L)
- 100µF to 6800µF rated capacitance range
- ±20% capacitance tolerance
- 10V to 63V rated voltage range
- -40°C to +105°C temperature range
- 55/105/56 climatic category IEC 60068
- Lifetime
- 3000hto 6000h endurance test at +105°C
- 4000h to 10,000h useful life at +105°C
- 200,000h to 500,000h useful life at +40°C, 1.8 x IR applied
- 1000h shelf life at 0V, +105°C
- IEC 60384-4/EN130300
Applications
- Power supplies (SMPS, DC/DC converters) for
- General industrial
- EDP
- Audio/video
- Automotive
- Telecommunications
- Smoothing
- Filtering
- Buffing
Additional Resource
Published: 2020-07-14
| Updated: 2023-07-24
