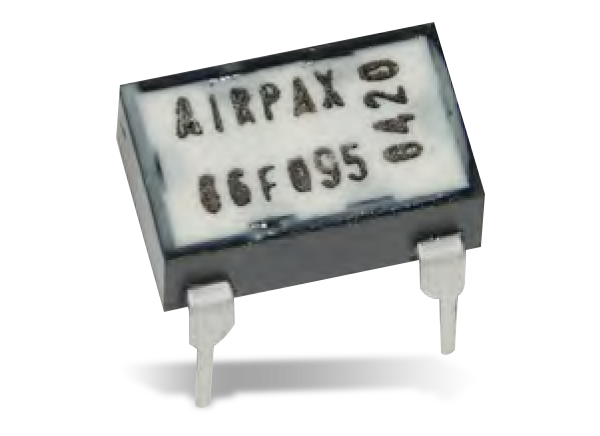

AIRPAX / Sensata 6600 8-Pin DIP Subminiature Bimetal Disc Thermostat offers a 50mΩ contact resistance, 1480VAC 60Hz dielectric strength, and a 48VDC maximum voltage rating. The 6600 series is sealed to withstand wave soldering and board washing operations. This thermostat is RoHS compliant per EU directive 2002/95/EC and conforms to the 8-pin DIP international electronic package standard. AIRPAX / Sensata 6600 8-Pin DIP Subminiature Bimetal Disc Thermostat is ideal for aircraft, automotive, computers, and computer peripheral applications.
RoHS compliant per EU directive 2002/95/EC
8-pin DIP international electronic package standard
Ideal for surface and air sensing on PC boards
Up to 30,000 life cycles @ max. standard amperage (120VAC)
Up to 100,000 life cycles @ max. gold contact amperage
50mΩ contact resistance
100MΩ @ 500VDC insulation resistance
Terminal contact: 65% Copper, 18% Nickel
1M operations mechanical life
1480VAC 60Hz dielectric strength
+40°C to +130°C operating temperature range
