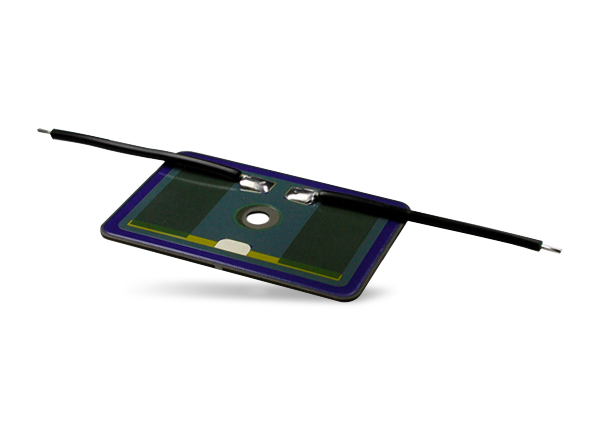

ARCOL / Ohmite TFBR Stainless Steel Power Resistors

ARCOL / Ohmite TFBR Stainless Steel Power Resistors provide high power density in a low-profile package. Designed for easy assembly and supplied with a variety of terminal styles, the film technology lends itself to high-frequency operation due to its low inductance characteristics. ARCOL / Ohmite TFBR Stainless Steel Power Resistors feature high instantaneous pulse capacity, making the TFBR resistors suitable for braking, snubbing, and discharge requirements. These TFBR stainless steel resistors are RoHS compliant.


  • ±10% (K) tolerance rating
  • -50°C to +200°C operating temperature range
  • +200°C maximum surface temperature
  • 1000VDC maximum operating voltage
  • ±150ppm/°C temperature coefficient
  • 2.5kVDC, 60s at 50Hz dielectric strength
  • <6µH inductance
