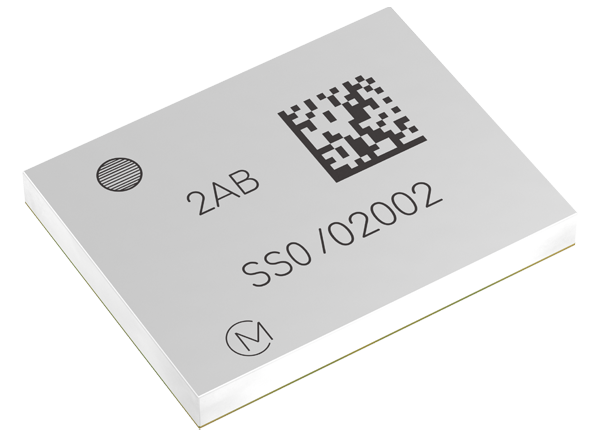

Murata Electronics Type 2AB UWB+BLE Combo Ultra-Wideband Module

Murata Electronics Type 2AB UWB+BLE Combo Ultra-Wideband Module features UWB (channels 5 and 9) and BLE 5.2 RF technology and low current consumption in an ultra-small 10.5mm x 83mm x 1.44mm package. The high-quality, low-power modules provide an embedded reference clock and integrated 3-axis sensor permitting a battery life of 10+ years. The Murata Electronics Type 2AB UWB+BLE Combo Wi-Fi Module is ideally suited for small, battery-operated IoT devices and applications.

Features

Small, highly integrated UWB module
75% less square area than a CoB solution
Frequency, Tx power, and Antenna delay are calibrated for each device
Hostless module, integrated Nordic IC/nRF52840, with a BLE function for waking up UWB and updating FW
USB, UART, SPI, and I²C interfaces
UWB Ch 5 and 9 + BLE 5.2 RF technology

ARM Cortex-M4 CPU core
Qorvo QM33120W IC
Integrated 3-axis sensor for saving battery life
Embedded reference clock
Supports multi-antenna design and evaluation
Easily powered by a CR2032 battery
Low current consumption
RoHS compliant

Applications

Smart home sensors and controllers
Industrial IoT sensors and controllers
Handheld wireless systems

Battery-powered devices
Connected tracking devices
Condition monitoring

Specifications

1MB Flash
256KB RAM
Supply voltage ranges
- 2.5V to 3.6V for V_DD1, V_DD2, and V_DDMCU
- 4.35V to 5.5V for V_USB
-40°C to +85°C operating temperature range
10+ years of battery life
