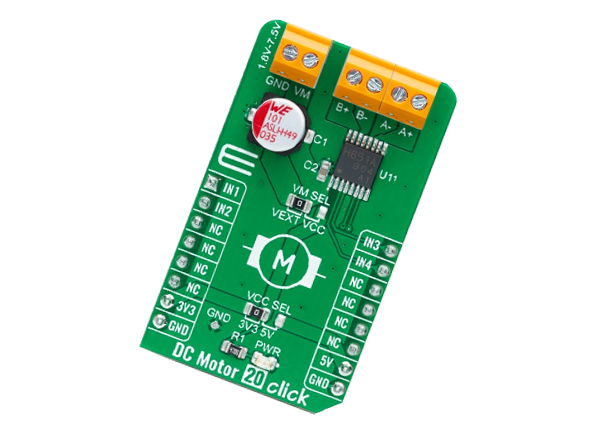

Mikroe DC Motor 20 Click

Mikroe DC Motor 20 Click features the Toshiba Semiconductor TC78H651AFNG dual H-bridge driver for one or two DC brushed motors. It incorporates DMOS with low ON resistance in output transistors. The Forward/Reverse/Stop mode can be selected according to the state of its input control signals routed to the GPIO pins of the mikroBUS™ socket. It has a wide operating voltage range of 1.8V to 7.5V with an output current capacity of 2A maximum.


  • On-board modules
  • Low power consumption
  • Dual bridge driver
  • High drive capability
  • Low voltage drive
  • Low-on resistance
  • Selectable motor operation
  • Built-in standby and protection features
  • GPIO interface
  • mikroBUS compatibility
  • M (42.9mm x 25.4mm) click board size
  • 3.3V or 5V, external input voltage


  • Driving DC brushed motors and stepping motors for low voltage equipment


Mikroe DC Motor 20 Click
Published: 2021-11-29 | Updated: 2022-03-11
