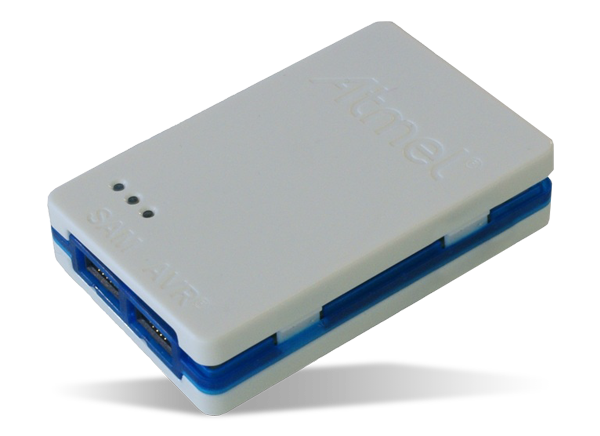

Microchip Technology Atmel-ICE Kit is a development tool for debugging and programming Arm® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability. Atmel-ICE is fully compatible with Atmel Studio and supports the programming and debugging of all Atmel AVR UC3 32-bit microcontrollers. The Atmel-ICE unit requires a front-end debugging environment Atmel Studio version 6.2 or later and should be connected to a host computer using the provided USB cable or a certified Micro-USB cable.
Atmel-ICE kit contents:
ATATMEL-ICE (Full Kit): Encapsulated main unit, USB cable, 10-lead squid cable, flat cable (10-pin 50mil connector and 6-pin 100mil connector), and adapter board (20-pin 100mil connector, 6-pin 50mil connector, and 10-pin 100mil connector)
ATATMEL-ICE-BASIC (Basic Kit): Encapsulated main unit, USB cable, and flat cable (10-pin 50mil connector and 6-pin 100mil connector)
Supports programming and debugging of all Atmel AVR UC3 32-bit microcontrollers
Supports programming and debugging of all 8-bit AVR XMEGA devices
Supports programming and debugging of all 8-bit Atmel megaAVR® and tinyAVR devices with OCD
Supports programming and debugging of all SAM ARM Cortex-M-based microcontrollers
Target operating voltage range of 1.62V to 5.5V
Draws less than 3mA from target VTref when using debugWIRE interface and less than 1mA for all other interfaces
Supports JTAG clock frequencies from 32kHz to 7.5MHz
Supports PDI clock frequencies from 32kHz to 7.5MHz
Supports debugWIRE baud rates from 4kbit/s to 0.5Mbit/s
Supports aWire baud rates from 7.5kbit/s to 7Mbit/s
Supports SPI clock frequencies from 8kHz to 5MHz
Supports UPDI baud rates from up to 750kbit/s
Supports SWD clock frequencies from 32kHz to 10MHz
USB 2.0 high-speed host interface
ITM serial trace capture at up to 3MB/s
Supports DGI SPI and USART interfaces when not debugging or programming
Supports 10-pin 50-mil JTAG connector with both AVR and Cortex pinouts. The standard probe cable supports AVR 6-pin ISP/PDI/TPI 100-mil headers and 10-pin 50-mil. An adapter is available to support 6-pin 50-mil, 10-pin 100-mil, and 20-pin 100-mil headers. Several kit options are available with different cabling and adapters.
Related Development Tools
Microchip Technology UPD301C Basic Sink Application Example (EV11L78A)
Reference design based on the UPD301C Standalone Programmable USB Type-C™ PD Controller.
