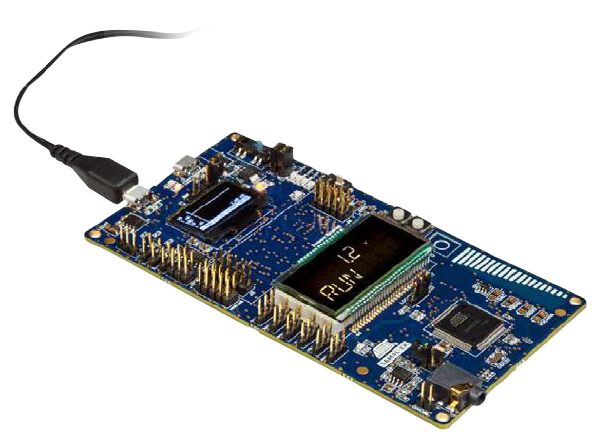

Microchip Technology ATSAM4L-EK Evaluation Kit
Microchip ATSAM4L-EK Evaluation Kit lets designers quickly evaluate and develop code for applications running on Microchip SAM4L Cortex™-M4 microcontrollers (MCUs). These new Microchip MCUs consume just one-third the power of currently available solutions. Microchip ATSAM4L-EK evaluation board features an embedded debugger, dedicated circuitry to measure the power consumption of your application, LCD, USB, capacitive touch functionality, and more. This ATSAM4L-EK kit also offers expansion headers to plug in Microchip extension boards so you can easily add gyrometers, accelerometers, Wi-Fi, and ZigBee.
Features
- ATSAM4LC4C Cortex-M4 device
- Board monitor with OLED color display, power measurement stage for ATSAM4LC4C power, joystick, and five LEDs
- Segger J-Link OB Module (embedded debugger)
- QTouch slider and button
- Segment LCD (4x40)
- USB host and device
- Wireless 10-pin interface
- SPI serial Flash (AT25DF641A)
- Sensor Xplained support
- Light sensor
- Reset push button
- Audio jack connector
- User input push button
- RS485 connector
Related Products
Microchip Technology SAM4L ARM Cortex-M4 Microcontrollers
Delivering the lowest power in active mode and shortest wake-up time.
Microchip Technology 32-Bit SAM 4 Microcontrollers
Based on the Arm® Cortex®-M4 core with up to 2048KB of Flash and up to 128KB of SRAM.
Related Development Tools
Microchip Technology 32-Bit SAM MCU Development Tools
Development boards and evaluation kits to help accelerate prototyping and speed time to market.
Evaluation Kit Call-Outs
ATSAM4L-EK Block Diagram
