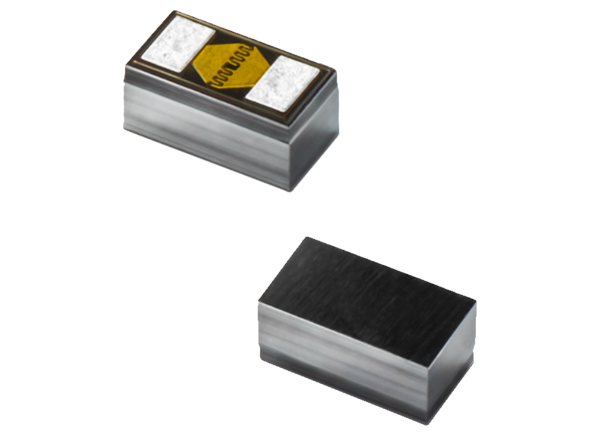

Littelfuse SP00R6 TVS Diode Array (SPA® Diode) is designed to protect low voltage -0.3V to +0.3V data lines and features extremely low breakdown / turn-on voltages. This robust diode safely absorbs repetitive electrostatic discharge (ESD) strikes above the maximum level specified in IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation. It also withstands electrically fast transients (EFT) per IEC 61000-4-4 standards. Littelfuse SP00R6 TVS Diode Array comes in a space-efficient 0201 package that is halogen and lead free as well as RoHS compliant.
ESD, IEC 61000-4-2, ±12 contact, ±15kV air
EFT, IEC 61000-4-4, 30A (5/50ns)
3A surge tolerance (8/20μs as defined in IEC 61000-4-5, 2nd Edition)
Low 0.2pF capacitance (typical)
Space-efficient 0201 package
Halogen and lead free
Thunderbolt 4 or 3
USB 3.2 Gen 2x2
USB 3.2 Gen 2
PCI Express 6.0
Functional Block Diagram
Littelfuse TVS Silicon Protection Arrays (SPA)
Designed for devices requiring advanced protection from ESD, EFT, and lightning induced transients.
