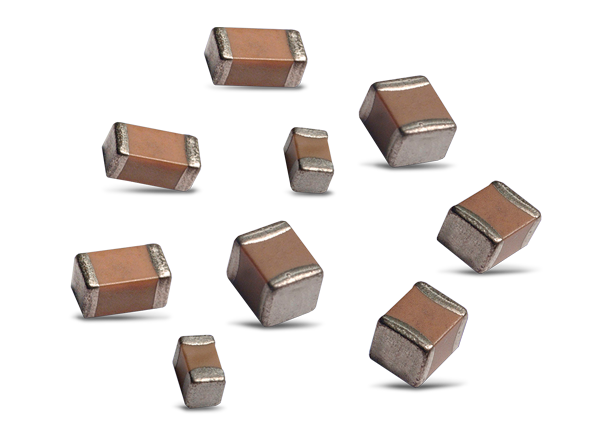

KYOCERA AVX MM Series MLCCs for Medical Applications are designed for medical applications other than implantable/life support. The MM components provide the design and change control expected for medical devices and offer enhanced LAT, including reliability testing with 100% inspection. These KYOCERA AVX capacitors offer a capacitance range of 0.5pF to 1.5µF in a 10V to 500V range with a -55°C to +125°C operating temperature range. The NP0 (C0G) versions feature plated Ni and SN termination finishes, and the X7R components have Flexiterm termination finishes.
MLCC technology for medical applications
Internal reliability qualification and lot acceptance testing (LAT) to support medical application requirements
Defined designs, materials, processes, and manufacturing facilities with change control that meets FDA requirements
Insulation resistance of 100,000MΩ or 1000MΩ - µF, whichever is less
Implantable, non-life sustaining medical devices, such as a temporary cardiac monitor or insulin pump
Non-implantable, life-sustaining medical devices, such as an external heart pump controller
External devices, such as patient monitoring and diagnostic equipment
