KYOCERA AVX Board-To-Board Connectors

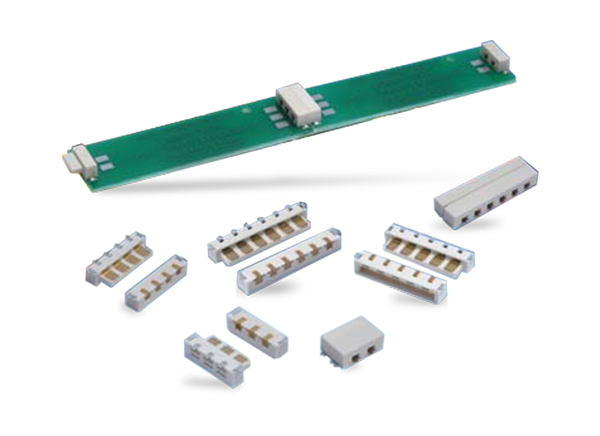

KYOCERA AVX Board-to-Board Connectors come in a wide variety of models that suit a vast array of applications. The two-piece connectors and individual contacts provide multiple packaging solutions for perpendicular, parallel, and coplanar applications. Other features of these KYOCERA AVX connectors include ultra-small pitch, low stacking heights, and a broad range of pin counts. The one-piece card edge, compression connectors, and individual contacts are available for a variety of signal and power requirements.
10-9159 Horizontal Plug
13-9159 Vertical Plug

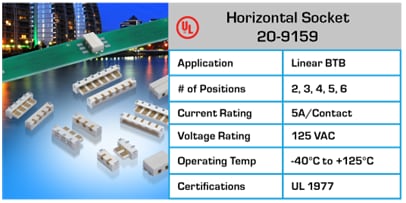

20-9159 Horizontal Sockets

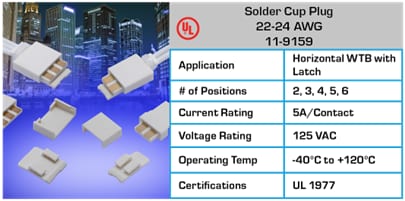

11-9159 Solder Cup Plug 22-24 AWG
14-9159 IDC Plug 22-24 AWG
22-9159 Top Load Sockets
24-9159 IDC Socket 22-24 AWG

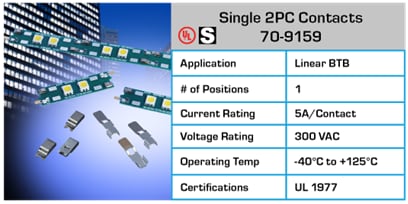

70-9159 Single 2PC Contacts
00-9148 Tall Stacker
00-9258 Ultra Low Profile Stacker
00-9158 Dual Row Stacker
00-9188 Staggered Stacker

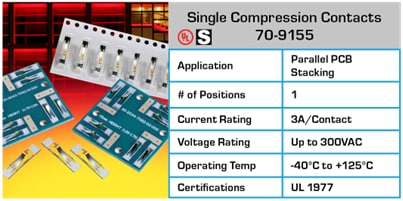

70-9155 Single Compression
70-9150 Pogo-Pin
9155-000 Standard 2.5mm Pitch
9155-200 Reduced 2.5mm Pitch
9155-700 Right Angle 2.0mm Pitch

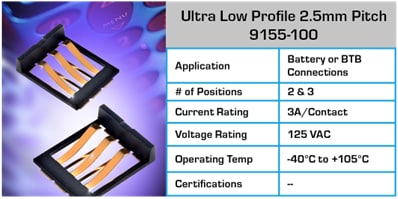

9155-100 Ultra Low Profile 2.5mm Pitch
9155-300 Right-Angle 3mm Pitch
9155-500 Right-Angle 2.5mm Pitch
9155-800 Vertical-Mate 2mm Pitch
9159-600 Dual Row Card Edge
00-9159 Standard Connectors
00-9159 Open Ended
00-9159 Inverted Thru Board
00-9159 Vertical Top Mount

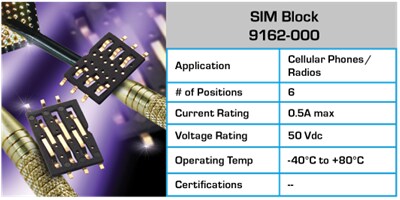

9162-000 SIM Block
9162-300 Locking SIM
