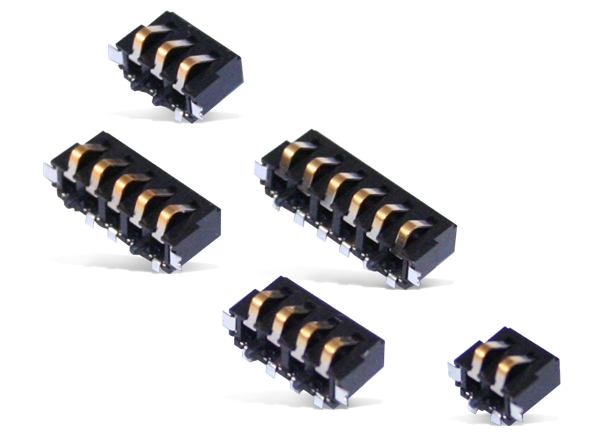

KYOCERA AVX 9155-800 2mm Pitch Vertical-Mate Connectors

KYOCERA AVX 9155-800 2mm Pitch Vertical-Mate Connectors are extremely reliable and feature gold-plated beryllium copper contacts that provide high integrity connections in harsh environments. The unique contact design of these KYOCERA AVX connectors deflects cleanly and easily when a module or mating connector is pushed vertically into position. This eliminates any end-user damage.

Features

  • Gold-plated BeCu contacts provide high electrical and mechanical performance over 5000 mating cycles
  • Unique contact geometry allows for full vertical engagement in pluggable module applications
  • Plastic locating bosses and SMT anchor tabs maximize the mechanical stability of the connector in harsh conditions
  • Contact nose incorporates an anti-snag feature to protect during deflection

Applications

  • Handheld/portable devices requiring docking or cradle charging
  • Patient monitoring or portable medical electronics
  • Industrial devices requiring pluggable or programming modules
  • Internet appliances requiring battery back-up

Specifications

  • Current ratings
    • 2.0A for 2p to 4p
    • 1.5A for 5p to 6p
  • 125VAC voltage rating
  • -40°C to +125°C operating temperature range
  • UL 94V-0 glass-filled Nylon 46 insulator material
  • Tin-plated phosphor bronze bracket material
  • Beryllium copper contact material
  • Gold over nickel plating, tin leads
  • 5.00mm connector height
  • 0.12mm maximum coplanarity on all contact tails/pads
  • 5000 cycle durability
  • RoHS compliant
