Eaton 10BJ 1000W Transient Voltage Suppressors

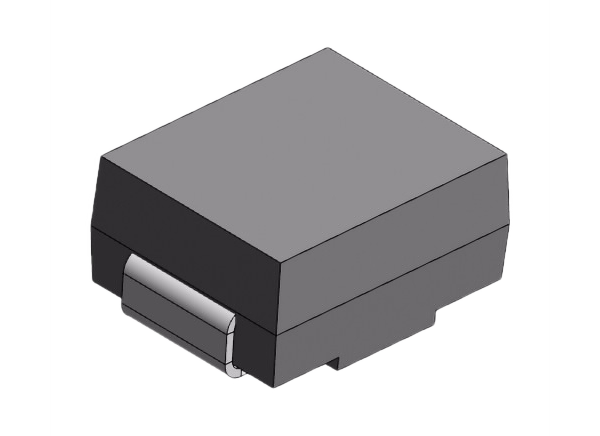

Eaton 10BJ 1000W Transient Voltage Suppressors are offered in a low-profile SMB package with less than 1μA typical I_R above 12V and 1000W peak pulse power capability at 10/1000μs waveform. Other features include excellent clamping capability and fast response time, typically less than 1ps from 0V to V_BR minimum. These UL 497B-recognized suppressors are designed for surface-mounted applications to optimize board space. The plastic package meets UL 94V-0 flammability rating and is moisture sensitivity level (MSL) 1. The series is suitable for high-temperature reflow soldering (+260°C/40s at the terminal). Ideal applications for Eaton 10BJ 1000W Transient Voltage Suppressors include consumer electronics, telecommunications, computing and servers, appliances, industrial automation, mobile, and wearables.
