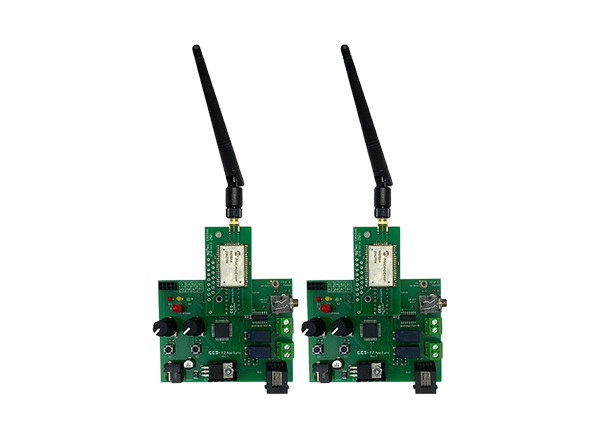

CCS Long-Range RF Prototyping Board
CCS Long-Range RF Prototyping Board features the powerful PCWH integrated Development Environment with compiler support. This long-range prototyping board can have a 9 mile RF link with a PIC® MCU and LoRaWAN®. The long-range communications drivers are also included with the compiler. This prototyping board features an RS-232 converter, ICD jack, 6I/O pins (4 can be analog), and an antenna. The Prototyping board offers two PushButtons, two Potentiometers. The board holds two Relays with dry contacts, and three LEDs. The temperature sensor, light sensor, and also one PMW controlled LED are offered by RF prototyping board. This board is compatible with the RN2903 LoRaWAN® module (size: 2.13" x 1.13").
Features
- Two pushbuttons
- Two potentiometers
- Two relays with dry contacts
- Three LEDs
- One PMW-controlled LED
- Light sensor
- Temperature sensor
- PIC18F45K22 processor
- RS-232 level converter
- Antenna
- 6 I/O pins (4 can be analog)
- RN2903 LoRaWAN® module (size: 2.13" x 1.13")
- ICD jack
