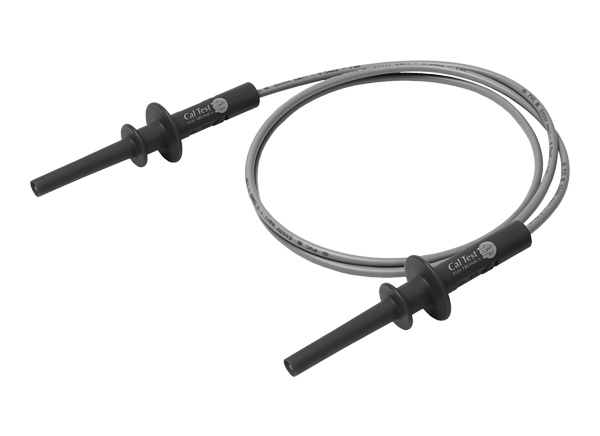

Cal Test Electronics CT3020 5kV Banana Plug Test Leads

Cal Test Electronics CT3020 5kV Banana Plug Test Leads are double-ended 4mm long‐reach sheathed banana plug test leads with PVC jackets. These test leads are rated to 1000V CAT IV. The CT3020 test leads come with a special high voltage and highly flexible test lead wire. These features allow the CT3020 test leads to interface with the 5kV and 4mm sheathed banana jack series. The CT3020 test leads are available in two colors and two lengths.

Features

  • Double-ended
  • 4mm long‐reach sheathed test leads
  • Operate up to 5kV when used in non-category environments with up to 2kV transient overvoltages
  • 1000V CAT IV rated
  • Highly flexible test lead wire
  • Available in two colors and two lengths

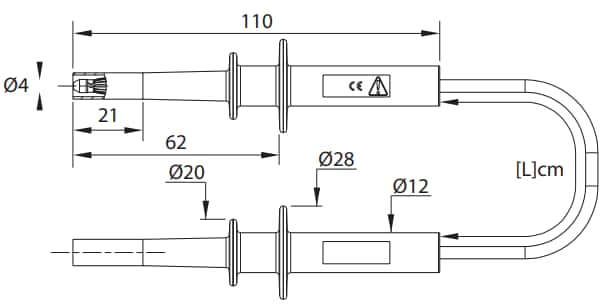

Dimensional Drawing

Mechanical Drawing - Cal Test Electronics CT3020 5kV Banana Plug Test Leads
