Bud Industries PIP IP67 & NEMA 4X Rated Enclosures

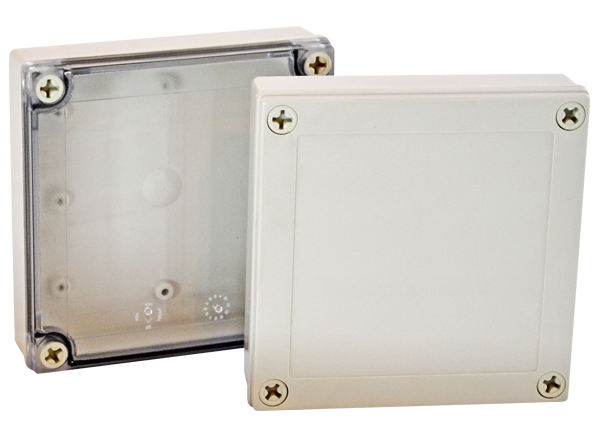

Bud Industries PIP Series IP67 and NEMA 4X Rated Enclosures provide waterproof protection of electronics and are made from polycarbonate plastic enhanced with 10% fiberglass. This offers improved rigidity and tighter tolerances. Bud Industries PIP series gives a tight, reliable seal and components will fit precisely without the need for time-consuming rework. A clear polycarbonate lid allows inspection without opening the box and indication without adding cutouts.


  • Body Made of Gray Polycarbonate (PC) resin 10% glass fiber filled
  • Cover made of Gray Polycarbonate (PC)
  • High impact resistance
  • IP67 TUV rating to keep out dust and water in extreme conditions.
  • UL508 / NEMA type 4X and type 6 listed #E343339.
  • RoHS compliant
  • UL industrial controls & CE Low Voltage directive 2006/95/EC listed
  • Non-chlorinated and non-brominated flame retardant with UL94V-0 rating
  • Suitable for outdoor use with respect to exposure to ultraviolet light, water exposure and immersion in accordance with UL 746C
  • Nonmetallic captive screws without the risk of stripping
  • Good chemical resistance
  • Continuous gasket
