Broadcom High-Brightness SMT Round & Oval LED Lamps

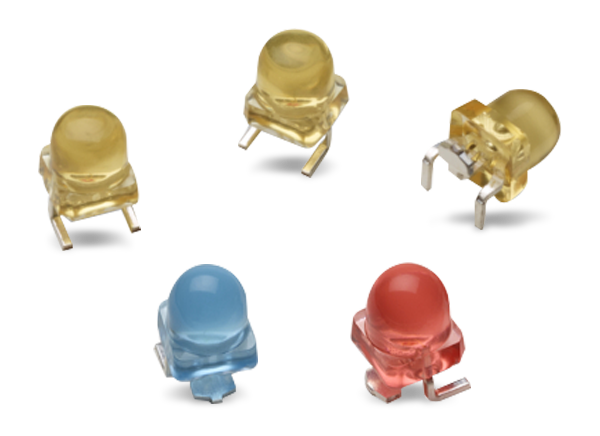

Broadcom High-Brightness SMT Round and Oval LED Lamps are high-brightness through-hole LEDs in the form of surface-mount devices. These devices can be assembled using standard SMT assembly processes and are compatible with an industrial reflow soldering process. These LEDs are made with advanced optical grade epoxy for superior performance in outdoor sign applications. For easy pick-and-place assembly, the LEDs are shipped in tape and reel. Each reel is shipped from a single intensity and color bin for better uniformity.

Features

  • High brightness InGaN (Green, Blue & White) or AlInGaP (Red & Amber)
  • Available in Green, Blue, Red, Amber, Cyan, and White
  • Typical viewing angle
    • 33° (All others)
    • 15° (AEMD-EG1K & AEMD-EL1K)
    • 23° (AEMD-EG2K & AEMD-EL2K)
    • 100° x 45° (AEMD-LM3L & AEMD-LB3L only)
    • 95° x 45° (AEMD-LG3K & AEMD-LL3K only)
    • 110° x 50° (AEMD-LY3N)
  • Tinted appearance
  • Surface mountable
  • Compatible with the industrial reflow soldering process
  • MSL 3

Applications

  • Variable message signs
  • Solar power signs
  • Monocolor signs
  • Gas price signs
  • Full color signs
  • Traffic signal

Datasheets

Related Products

AEMD-Cx1L LEDs

Broadcom AEMD-Cx1L LEDs

High brightness surface-mountable through-hole LEDs with a viewing angle of 15°.

Learn Moreabout Broadcom AEMD-Cx1L LEDs View Productsrelated to Broadcom AEMD-Cx1L LEDs
AEMD-Cx2L LEDs

Broadcom AEMD-Cx2L LEDs

High brightness surface-mountable through-hole LEDs with a viewing angle of 23°.

Learn Moreabout Broadcom AEMD-Cx2L LEDs View Productsrelated to Broadcom AEMD-Cx2L LEDs
AEMD-CE2L LEDs

Broadcom AEMD-CE2L LEDs

High brightness surface-mountable through-hole LEDs with a viewing angle of 23°.

Learn Moreabout Broadcom AEMD-CE2L LEDs View Productsrelated to Broadcom AEMD-CE2L LEDs

Package Drawing

Mechanical Drawing - Broadcom High-Brightness SMT Round & Oval LED Lamps
