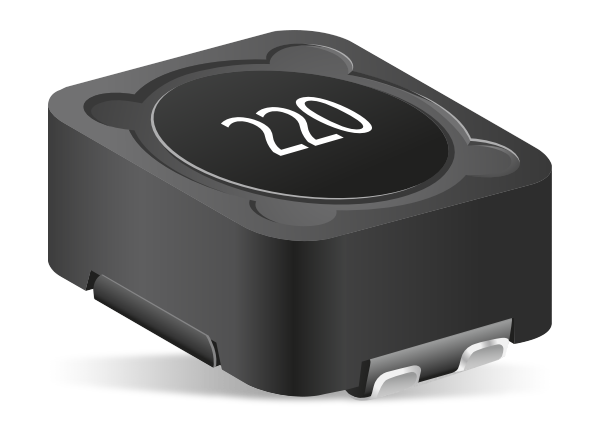

Bourns SRF1260A Dual-Winding Shielded Power Inductors
Bourns SRF1260A Dual-Winding Shielded High Current Power Inductors can be configured in parallel, series, dual-inductor, and transformer applications. These magnetically shielded, low radiation inductors offer a heating current of up to 17.6A and an inductance range of 0.47µH to 4000µH. Other features include a storage and operating temperature range of -40°C to +125°C and a ferrite core. The SRF1260A series is AEC-Q200 qualified, halogen free, and RoHS compliant. Applications for Bourns SRF1260A Dual-Winding Shielded High Current Power Inductors include various automotive systems, DC/DC converters, and power supplies.
Features
- Parallel, series, dual-inductor, and transformer configurations
- Magnetically shielded, low radiation
- AEC-Q200 qualified
- Ferrite core
- Enameled copper wire
- Tin terminal finish
- Halogen free
- RoHS compliant
Specifications
- 0.47µH to 4000µH inductance range
- Up to 17.6A heating current
- -40°C to +125°C operating temperature range (includes temperature rise)
- Resistance to solder heat: +245°C for 10s
- 40°C typical temperature rise at rated Irms
- 30% typical inductance drop at Isat
Applications
- Automotive systems
- Driver assistance
- Information
- Entertainment
- Lighting
- DC/DC converters
- Power supplies
- SEPIC - DC/DC converters
Additional Resources
Related Inductors
Bourns SRF High Current Power Inductors
Designed for automotive applications, including information/entertainment systems.
Bourns SRF Dual Winding Shielded Power Inductors
Configure in parallel or series for different rated currents and inductances.
Published: 2018-10-29
