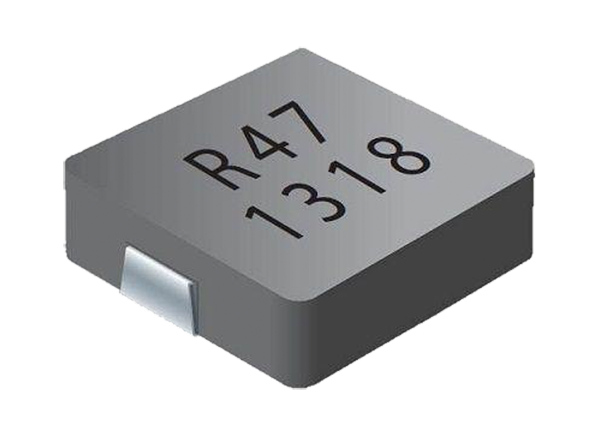

Bourns SRP Automotive High Current Inductors
Bourns SRP Automotive High Current Power Inductors feature high saturation current and shielded construction for low magnetic radiation. The inductance range covers 0.1µH to 47μH. Inductor footprints range from 4.5mm x 4.1mm to 13.5mm x 12.5mm, heights range from 1mm to 6.2mm, Irms up to 55A, and Isat up to 118A. Typical automotive applications for Bourns SRP Automotive High Current Power Inductors include driver assistant devices, information/entertainment systems, and lighting. The electrical characteristics and dimensions are functionally equivalent to the existing standard series. AEC-Q200-qualified versions are available.
Features
- Shielded construction
- Low DCR
- High saturation current
- High temperature
- Low buzz noise
- Round wire / Flat wire
- AEC-Q200 qualified available
Applications
- EMI filters
- Automotive
- Consumer
- Industrial
- Medical
- Telecom
- AC/DC converters
- DC/DC converters
Featured Inductors
Bourns SRP5030TA Automotive Shielded Power Inductors
Carbonyl powder core, shielded construction, high saturation current, and AEC-Q200 qualified.
Bourns SRP1770TA Shielded Power Inductors
Shielded construction, carbonyl powder core, high saturation current, 1µH to 100μH inductance range.
Bourns SRP2512A Automotive Power Inductors
Ideal for automotive electronics applications and offers a low 1.2mm profile with a small footprint.
Bourns SRP2010DPA High Current Shielded Power Inductors
AEC-Q200 compliant low-profile devices with a 1mm maximum height.
Bourns SRP2510A Automotive Power Inductors
Ideal for automotive electronics applications and features a low profile with a small footprint.
Bourns SRP7050TA Shielded Power Inductors
Shielded construction, carbonyl powder core, high saturation current, 0.33µH-68µH inductance range.
Bourns SRP4012TA Shielded Automotive Power Inductors
Low-profile and shielded with a carbonyl powder core and high saturation current.
Bourns SRP4020TA Shielded Automotive Power Inductors
Shielded construction with carbonyl powder core, high saturation current, 0.1μH to 22μH inductance.
Bourns SRP High Current Power Inductors
Expansive range of products with heights ranging from 1mm to 7mm, RoHS compliant.
