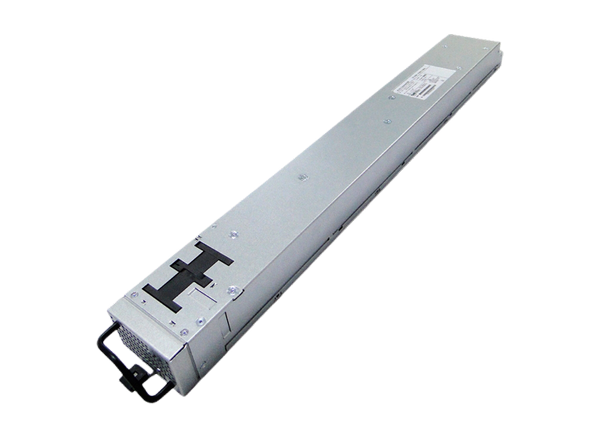

Bel Power Solutions TET3200 AC-DC / HVDC Front-End Power Supply

Bel Power Solutions TET3200 AC-DC / HVDC Front-End Power Supply is a 3200W AC-DC power-factor-corrected (PFC) or DC-DC power supply. The unit converts standard AC mains power or high voltage DC bus voltages into a main output of 12V_DC for powering intermediate bus architectures (IBA) in high-performance and reliability servers, routers, and network switches. The TET3200 has a universal input voltage range of 90V_AC to 300V_AC and a DC input range of 180V_DC to 410V_DC. The power supply is hot-plug capable and features I²C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader. Bel Power Solutions TET3200 AC-DC / HVDC Front-End Power Supply meets international safety standards and displays the CE Mark for the European Low Voltage Directive (LVD).

Features

Best-in-class, titanium efficiency
AC input with power factor correction
Hot-plug capable
I²C communication interface with Power Management Bus protocol for monitoring, control, and firmware update via bootloader
Full digital controls for improved performance
Parallel operation with active current sharing through analog bus

Overtemperature, output overvoltage, and overcurrent protection
RoHS compliant
Safety approved to UL/CSA 62368-1, IEC/EN 62368-1, and IEC/EN 60950-1
Three US patents (US 6,970,366 B2; US 8,503,199 B1; US9,166,498 B2) and three US patents pending
