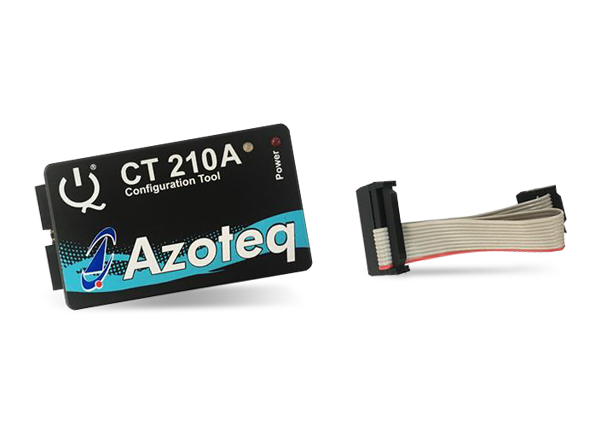

Azoteq CT210A USB Dongle Programmer
Azoteq CT210A USB Dongle Programmer is designed to connect various Azoteq evaluation kits to a PC via a micro-USB cable. The user can then use the USBProg graphic user interface (GUI) software to program the target IC for specific applications. Additional dedicated software for each IC is also offered by Azoteq for serial streaming of data, feature visualization, and flash / boot loader programming.
Features
- Connects Azoteq evaluation kits to a PC via a micro-USB cable
- Serial communication between computer and target IC via 1-wire communication protocol, SPI, or I2C
- Flash programming
- Boot loader programming
- Enables one-time programmable (OTP) bits for applicable ICs to customize devices for applications
Pin Assignments
Related Development Tools
Azoteq CT00x-S Programming Sockets
Interface used for programming TS0T23-6 capacitive touch sensors with one-time programmable options.
Azoteq IQS624EV0x & IQS624/5EV0x Sensor Evaluation Tools
Designed for the evaluation of IQS624 and IQS625 ProxFusion® ICs.
Azoteq IQS680EV02 Evaluation Board
Designed for the evaluation of the IQS680 combination proximity sensor.
Azoteq IQS620AEV0x-S Evaluation Kits
Enables the demonstration and evaluation of the IQS620A ProxSense Sensor IC.
Azoteq IQS231BEV02-S Evaluation Kit
Kit includes a shield board, three stamp modules, & ICs connected to a PC via a CT210A USB dongle.
