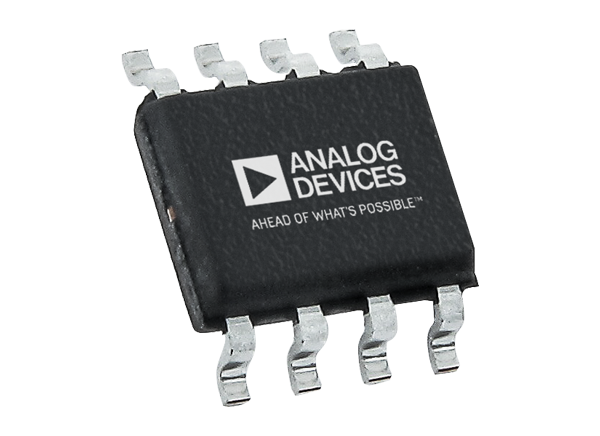

Analog Devices Inc. LTC6226/LTC6227 Rail-to-Rail Output Op Amps

Analog Devices LTC6226/LTC6227 Rail-to-Rail Output Operational Amplifiers (Op Amps) are very fast, low noise, unity-gain stable single/dual op amps, with a gain-bandwidth product of 420MHz and a slew rate of 180V/μs. The low input-referred voltage noise of only 1nV/√Hz and low distortion of less than –90dBC for 4VP-P signals at 1MHz makes them ideal for applications that require high dynamic range and deal with very fast signals, such as driving A/D converters. The combination of low offset, low offset drift, high gain (139dB), and high CMRR (114dB) make these excellent devices for high dynamic range applications.

The LTC6226/LTC6227 family maintains excellent performance for supply voltages of 2.8V to 11.75V and the devices are fully specified at supplies of 3V, 5V, and 10V (±5V). With an input range extending to the negative rail and rail-to-rail output stage, the operational amplifier can accommodate wide-swinging signals and true single-supply operation. For space-constrained applications, the amplifiers come in 2mm × 2mm DFN (single) and 3mm × 3mm DFN (dual) packages. The devices are also available in 8-lead SOIC, TSOT-23, and MS8E. These amplifiers can be used as replacements for many high-speed op amps to improve speed, noise, and dynamic range.


  • 1nV/√Hz ultra-low voltage noise
  • HD2/HD3 <–90dBC at 4VP-P, 1MHz into 1kΩ low distortion
  • 180V/μs high slew rate
  • 420MHz gain-bandwidth (GBW)
  • 330MHz –3dB frequency (AV = +1)
  • n input common-mode range includes the negative rail
  • Output swings rail-to-rail
  • 5.5mA/channel typ supply current
  • 2.8V to 11.75V operating supply range
  • 95μV max input offset voltage
  • 0.4μV/°C offset drift
  • Low power shutdown
  • 9V/μV (139dB), RL = 1kΩ very high open-loop gain
  • –40°C to 125°C operating temp range
  • Packages
    • Single in 8-Lead SOIC, TSOT-23, 2mm × 2mm DFN
    • Duals in 3mm × 3mm DFN, MS8E


  • Optical electronics: fast AC-coupled transimpedance amplifiers
  • Driving high dynamic range A/D converters
  • Active filters
  • Video amplifiers
  • Low voltage low distortion amplification

Typical Application

Application Circuit Diagram - Analog Devices Inc. LTC6226/LTC6227 Rail-to-Rail Output Op Amps
Published: 2020-04-14 | Updated: 2022-03-10
