Analog Devices LT8604 Demonstration Board is designed to evaluate LT8604 high efficiency 42V, 120mA synchronous buck regulator. This demonstration board is also designed for 120mA at 5V output from a 5.9V to 42V input, with switching frequency of 0.7MHz. The LT8604 demonstration board comes with an EMI filter installed. The red line in radiated EMI performance is CISPR25 class 5 peak limit.

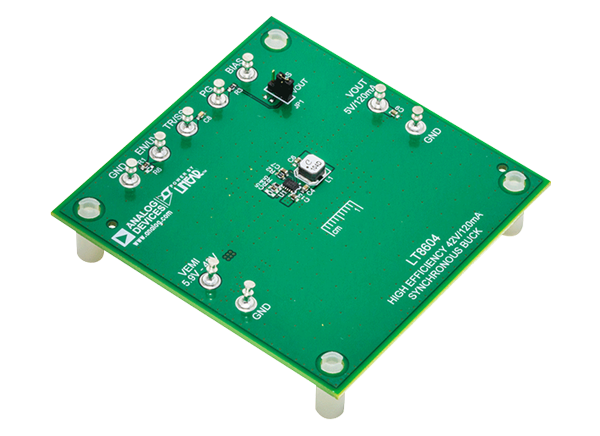

Development Board View
Associated Switching Regulators
Analog Devices Inc. LT8604 Switching Voltage Regulators
Compact, high-speed synchronous monolithic step-down regulators that deliver up to 120mA of current.
