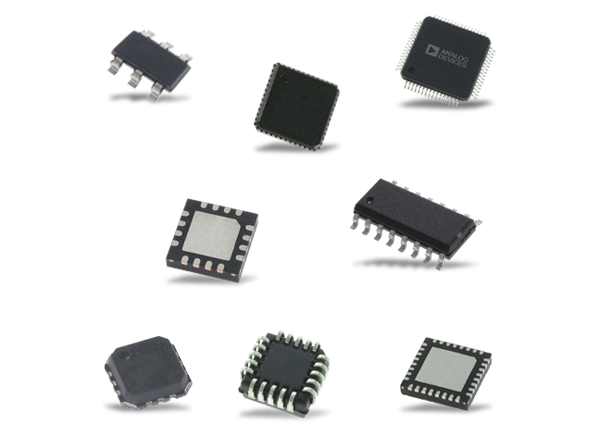

Analog Devices Inc. Lithium Ion Battery Formation & Test Solutions
Analog Devices Inc. Lithium Ion Battery Formation and Test Solutions offer a small, environmental-friendly system for testing and forming rechargeable battery cells and packs. The offering uses a PWM controller to provide charging energy. With these solutions from Analog Devices, designers can direct discharging energy to other cells or send the energy back to the grid to minimize energy usage.
Chain Diagram
Drivers
Analog Devices Inc. ADuM7223 Isolated Precision Half-Bridge Driver
Reliable control over switching characteristics of IGBT/MOSFET configurations.
PWM Controllers
Analog Devices Inc. ADP1972 Buck or Boost PWM Controllers
Constant frequency, voltage mode, ideal for buck or boost, DC-to-DC, asynchronous applications.
Analog Devices Inc. AD8452 PWM Controllers
Ideal for high volume battery testing and formation manufacturing.
Amps
Analog Devices Inc. AD8452 PWM Controllers
Ideal for high volume battery testing and formation manufacturing.
Analog Devices Inc. AD8276/AD8277 Unity-Gain Difference Amplifiers
Unity-gain difference amplifiers for precision signal conditioning in power-critical applications.
Analog Devices Inc. AD8479 Precision Difference Amplifier
Precision difference amplifier with a very high input common-mode voltage range.
Analog Devices Inc. AD8221 Precision Instrumentation Amplifier
Instrumentation amplifier that delivers the industry’s highest CMRR over frequency in its class.
Analog Devices Inc. AD8226 Instrumentation Amplifiers
±1.35V to 36V Wide Supply Range, Rail-to-Rail Output Instrumentation Amplifiers.
Analog Devices Inc. ADA4522 Operational Amplifiers
Single, Dual, and Quad Channel zero-drift Op Amps optimized for accuracy & high immunity to EMI.
Analog Devices Inc. ADA4177 Operational Amplifiers
OVP and EMI Protected, Precision, Low Noise and Bias Current Op Amps.
Analog Devices Inc. AD8450 Precision Analog Front End & Controllers
Ideal for testing and monitoring battery cells.
Analog Devices Inc. AD8451 Precision Analog Front-End & Controller
Designed to test and monitor battery cells, interfaces directly with ADI ADP1972 PWM controller.
Analog Devices Inc. ADTL082/ADTL084 JFET Input Amplifiers
Delivers lower noise, offset voltage, offset drift over temperature, & bias current than TL08x.
MUX
Analog Devices Inc. ADG5208F/ADG5209F Fault Protection Multiplexers
Fault Protection, 8:1/Dual & 4:1 Multiplexers with overvoltage protection up to −55V and +55V.
ADG12xx Multiplexers - Low capacitance per channel as well as low and stable charge injection performance over the full signal range with only 1.5pF off capacitance and >1pC charge injection.
ADCs
Analog Devices Inc. AD7124 Analog Front End (AFE) Portfolio
Features low power, low noise, completely integrated AFEs for high precision applications.
Analog Devices Inc. AD717x Low-Power Sigma-Delta ADCs
Provides a complete integrated ∑-Delta ADC solution for high-precision, low-noise applications.
Analog Devices Inc. AD7173-8 Low-Power Sigma-Delta ADCs
Low-power, 8-/16-channel, 31.25kSPS, 24-Bit, highly integrated ∑-Δ ADCs.
Analog Devices Inc. AD7175-2 24-Bit, 250kSPS Sigma Delta ADC
Low noise, 24-Bit, 250kSPS Sigma Delta ADC with 20μs settling & true rail to rail buffers.
Analog Devices Inc. AD7779 24-Bit Simultaneous Sampling ADCs
8-channel Simultaneous Sampling ADCs; ensure fast power-up in circuit breaker equipment.
DACs
Analog Devices Inc. AD5360/AD5361 16-/14-Bit Voltage-Output DACs
16-Channel, 16-/14-Bit, Serial Input, Voltage-Output DACs; handle clock speeds of up to 50MHz.
Analog Devices Inc. AD5689/AD5689R Dual 16-Bit nanoDAC+
Low-power, dual, 16-bit, buffered voltage output digital-to-analog converter (DAC).
Voltage References
Analog Devices Inc. ADR44x XFET Voltage References
Ultra-low noise, LDO XFET® Voltage References with Current Sink and Source.
Analog Devices Inc. ADR45xx Voltage References
Ultra-low noise, high-accuracy 2.048V to 3.3V voltage references suitable for portable equipment.
Microcontrollers
Analog Devices Inc. Blackfin® 16-/32-bit Processors
Offers software flexibility and scalability for convergent applications.
IC Switch
Analog Devices Inc. ADG1211 iCMOS® Quad SPST Switches
Low capacitance, low charge injection, and ±15V/12V iCMOS Quad SPST Switches.
Reference Design
CN0292 Circuit Evaluation Board - Demonstrate the features and capabilities of the CN0292 completely isolated, robust, 4-channel, multiplexed data acquisition system for industrial level signals.
