Analog Devices Inc. EVAL-CN0390-EB1Z Circuit Evaluation Board
Analog Devices Inc. EVAL-CN0390-EB1Z Circuit Evaluation Board evaluates the performance of the CN0390 20GHz to 37.5GHz RF Automatic Gain Control (AGC) Circuit. The AGC circuit is useful for many functions such as amplitude stabilization of a synthesizer, controlling output power in a transmitter, and optimizing dynamic range in a receiver.
The CN0390 Circuit integrates the ADL6010 Envelope Detector, ADA4077-1 High Precision Amplifier, HMC985A GaAs Voltage Variable Attenuator, and HMC635 GaAs RF Amplifier. The ACG figure of merit is between 20GHz and 30GHz. Analog Devices Inc. EVAL-CN0390-EB1Z Circuit Evaluation Board is ideal for microwave instrumentation and radar-based measurement systems.
Features
- 20GHz to 37.5GHz RF automatic gain control
- Wide input amplitude range
- Low phase noise

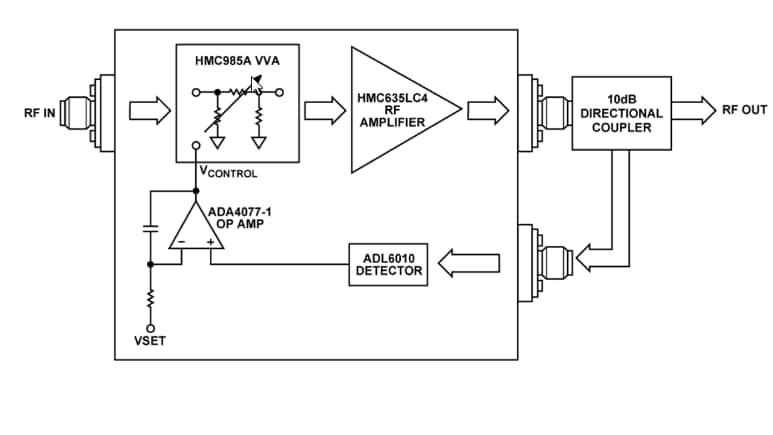

Block Diagram
Associated Products
Analog Devices Inc. HMC985A GaAs Voltage Variable Attenuators
35dB GaAs MMIC Absorptive Voltage-Variable Attenuators that operate from 10 to 50GHz.
Analog Devices Inc. ADL6010 Envelope Detector
Versatile, broadband envelope detector covering the microwave spectrum.
Analog Devices Inc. ADA4077 High Precision Amplifiers
Best combination of offset voltage, voltage thermal drift, and more for front-end amp circuits.
Published: 2017-07-11
| Updated: 2022-04-18
