Analog Devices Inc. EVAL-ADuM5020 & EVAL-ADuM5028 Evaluation Boards

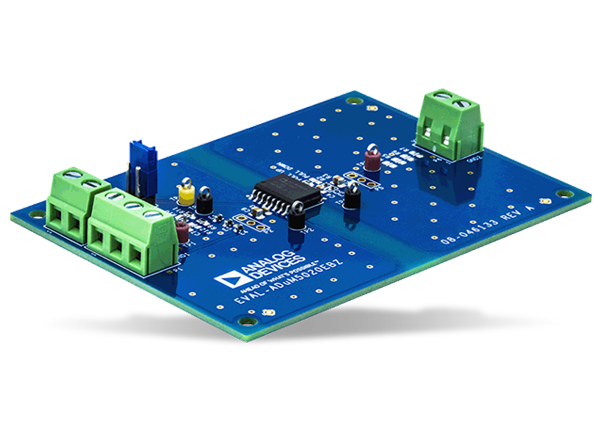

Analog Devices Inc. EVAL-ADuM5020 and EVAL-ADuM5028 Evaluation Boards allow designers to demonstrate and evaluate the ADuM5020 and ADuM5028 isoPower® DC-to-DC Converters. Analog Devices EVAL-ADuM5020 and EVAL-ADuM5028 Evaluation Boards include a pre-mounted isoPower device, either the ADuM5020 or the ADuM5028.
ADuM502x sample device can be powered directly or through the onboard low drop-out regulator (LDO). Either power scheme can be used without modification to the EVAL-ADuM5020 or EVAL-ADuM5028 Evaluation Boards. Each complete Board can be powered by a 9V battery, such as when testing for electro-magnetic compatibility (EMC).
EVAL-ADuM502 and The EVAL-ADuM5028 Evaluation Boards are tested and certified to pass the EN55022 Class B standard.
Features
- ADuM502x isoPower Integrated isolated DC-to-DC Converter
- 2-layer PCB with low radiated emissions, passes CISPR22/EN55022 Class B standard
- On-board LDO for 6V to 9V supply, providing 5V to the ADuM502x VDDP pin
- 5V input and 5V or 3.3V output operation
- Screw terminal connectors for
- 6V to 9V LDO power supply
- 5V direct power supply
- Off-board PDIS control
- Isolated output supply
Associated Converters
Analog Devices Inc. ADuM5020 & ADuM5028 isoPower DC-to-DC Converters
Low-emission, 3000Vrms, isolated DC-to-DC Converters for applications up to 500mW.
Analog Devices Inc. ADuM6020 & ADuM6028 isoPower® DC-to-DC Converters
Low-emission, 5kVrms isolated DC-to-DC Converters for applications up to 500mW.
