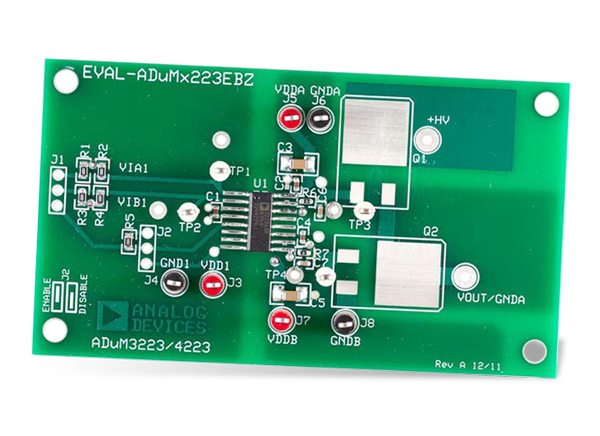

Analog Devices EVAL-ADUM4223AEBZ Evaluation Board is used to assess the features of the ADuM4223 Precision Isolated Half-Bridge Gate Drivers. The EVAL-ADuM4223AEBZ Evaluation Board allows designers to bootstrap the high-side supply to the low-side supply. To support the evaluation of the ADuM4223 devices, the board provides a 4A peak output current, 4.5V to 18V output drive, and high-frequency operation up to 1MHz. Because the EVAL-ADuM4223AEBZ accommodates footprints for IGBTs and MOSFETs in TO-263 or TO-252 packages, many different power devices can be used to evaluate the ADuM4223 Precision Isolated Half-Bridge Gate Drivers.
4A peak output current
High-frequency operation: 1MHz maximum
CMOS input logic levels
4.5V to 18V output drive
Supports TO-263 or TO-252 IGBT/MOSFETs
Related Half-Bridge Drivers
Analog Devices Inc. ADuM3223/ADuM4223 Isolated Half-Bridge Drivers
Precision isolated drivers with 4A output, <55ns propagation delay, and <5ns delay matching.
