Analog Devices EVAL-AD5753SDZ DAC Evaluation Board is designed to help evaluate the AD5753, a single-channel, 16-bit voltage and current output, digital-to-analog converter (DAC). The kit includes the EVAL-SDP-CS1Z system demonstration platform (SDP-S) board, which is required when using the EVAL-AD5753SDZ board. The EVAL-AD5753SDZ interfaces to the USB port of the PC via the EVAL-SDP-CS1Z (SDP-S). Analysis Control Evaluation (ACE) software is available to use with the EVAL-AD5753SDZ and allows the programming of the AD5753.
Fully featured evaluation board for the AD5753
Onboard 2.5V ADR4525 reference

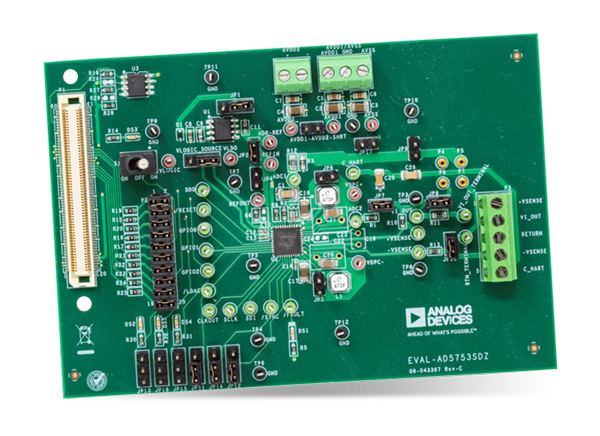

EVAL-AD5753SDZ Evaluation Board
EVAL-SDP-CS1Z (SDP-S) Controller Board
Analog Devices Inc. AD5753 Single-Channel Digital-to-Analogue Converter
Operates with a power supply range from a minimum of −33V on AVSS to a maximum of +33V on AVDD1.
