Analog Devices Inc. Amplifier Mezzanine Cards for ADC Drivers

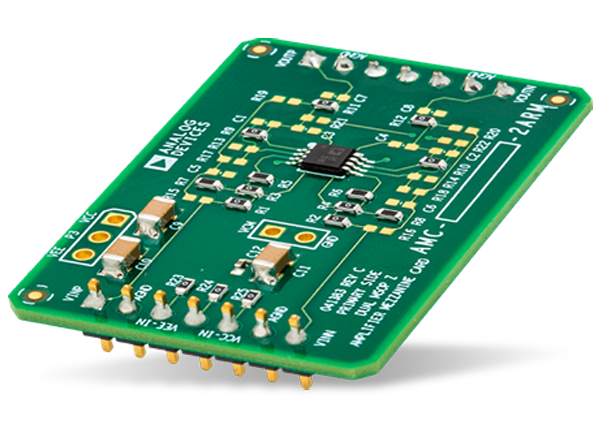

Analog Devices Amplifier Mezzanine Cards for ADC Drivers are analog-to-digital converter (ADC) drivers that evaluate the performance of amplifiers. This add-on board is inserted on ADC evaluation boards using its 7-pin header. The AMC supports Analog Devices operational amplifiers and ADC drivers in different packages. The user can configure the ADC driver as a Sallen-Key low-pass, high-pass, or band-pass filter and as a multiple feedback low-pass. The ADC driver can also be configured for a high-pass or band-pass filter or as an inverting and noninverting operational amplifier. The user can also configure the AMC to drive a single-ended, fully differential, or single-ended signal to a differential ADC.
Features
- Enables quick breadboarding and prototyping
- User-defined circuit configuration
- Easy connection to other ADC evaluation boards
- Compatible PulSAR® Evaluation Boards
- 10-lead PulSAR® evaluation board
Works With
Analog Devices Inc. ADA4500-2 Crossover Distortion Amplifiers
10MHz, 14.5nV/√ Hz, RRIO, zero input crossover distortion dual operational amplifiers.
Analog Devices Inc. ADA489x Rail-to-Rail Output Amplifiers
Unity-gain stable, low-noise voltage feedback amplifiers with a quiescent current of 3mA.
Analog Devices Inc. ADA4805 High-Speed Amplifiers
Rail-to-rail output amplifiers with an exceptionally low quiescent current of 500μA.
Analog Devices Inc. ADA4807-1/-2/-4 Operational Amplifiers
3.1nV/√Hz, 1mA, 180MHz, rail-to-rail input/output amplifiers with exceptionally high performance.
