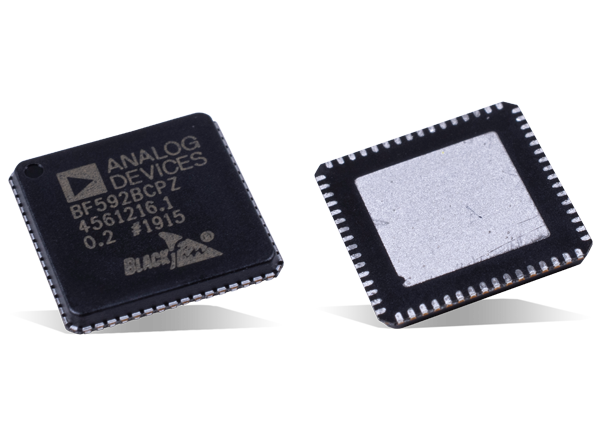

Analog Devices ADSP-BF592 Blackfin Embedded Processor offers performance up to 400MHz and reduced static power consumption. ADI ADSP-BF592 Blackfin Embedded Processor is a highly integrated system-on-a-chip solution for the next generation of digital communication and consumer multimedia applications. The ADI ADSP-BF592 combines industry standard interfaces with a high-performance signal processing core, allowing for quick development of cost-effective applications without the need for costly external components.
ADSP-BF592KCPZ-2 Blackfin processor core with 200MHz (400MMACs) performance and 68KB L1 memory
ADSP-BF592KCPZ Blackfin processor core with 400MHz (800MMACs) performance and 68KB L1 memory
L1 Instruction ROM block with VDK RTOS and C runtime libraries
Two SPI, two SPORT, two UART, and one Parallel Peripheral Interface (PPI)
Nine peripheral DMA channels and two memory-to-memory DMA channels
9mm x 9mm LFCSP package
Commercial, industrial, and automotive temperature grades
Low-cost imaging devices
Consumer handheld devices
Automotive driver assistance systems
Analog Devices Inc. Blackfin® 16-/32-bit Processors
Offers software flexibility and scalability for convergent applications.
