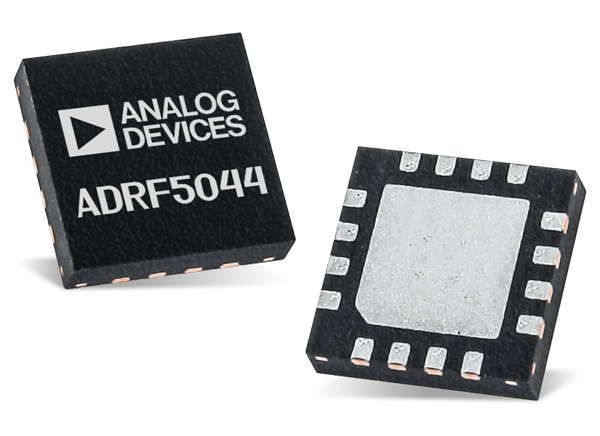

Analog Devices Inc. ADRF5044 SP4T Switches
Analog Devices ADRF5044 Single-Pole, Four-Throw (SP4T) Switches are general-purpose SP4T switches with an ultra-wideband frequency range. Developed using a silicon process and a non-reflective 50Ω design, these switches provide complementary metal-oxide semiconductor (CMOS)/low voltage transistor-transistor logic (LVTTL) logic-compatible control. These Analog Devices broadband switches require +3.3V and -3.3V dual-supply voltages and have a 0.1dB settling time of 37ns.
The ADRF5044 Switches offer high isolation, a low-insertion loss, high-input linerarity of 28dBm P1dB and 50dBm IP3, and high-power handling of 24dBm for through and terminated paths over a 100MHz to 30GHz frequency range. Available in a 24-terminal LGA package, the ADRF5044 Switches are well-suited for microwave and military radios, radars, and broadband telecommunications systems.
Features
- 100MHz to 30GHz ultra-wideband frequency range
- Nonreflective 50Ω design
- 2.6dB at 20GHz to 30GHz low insertion loss
- 43dB at 20GHz to 30GHz high isolation
- High input linearity
- 28dBm typical P1dB
- 50dBm typical IP3
- High power handling
- 24dBm through path
- 24dBm terminated path
- No low-frequency spurious
- 0.1dB settling time (50% VCTL to 0.1dB of final RF output): 37ns
- 24-terminal LGA package
Applications
- Test instrumentation
- Microwave radios and very small aperture terminals (VSATs)
- Military radios, radars, and electronic countermeasures (ECMs)
- Broadband telecommunications systems
Block Diagram
Related Switches
Analog Devices Inc. RF Switches
High bandwidth CMOS switches and multiplexers that reduce PCB board space.
Analog Devices Inc. ADRF5046 Si SP4T Reflective Switch (0.1-44GHz)
Broadband switch operating from 100MHz to 44GHz, with low insertion loss and high isolation.
Development Tools
Analog Devices Inc. EVAL-ADRF5044 Eval Board for ADRF5044 SP4T Switch
Evaluates the performance of the 100MHz to 30GHz ADRF5044 SP4T Switches.
