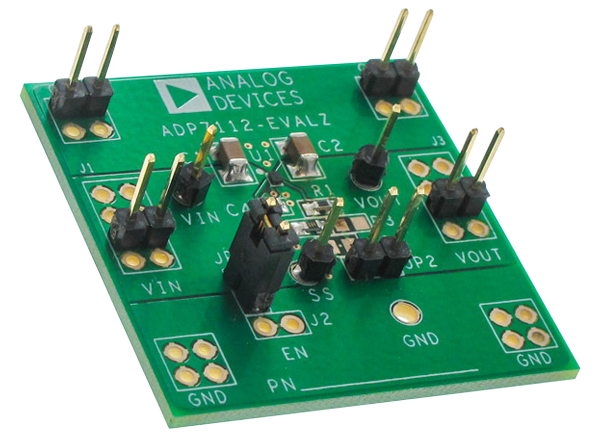

Analog Devices Inc. ADP7112CB-EVALZ Evaluation Board

Analog Devices ADP7112CB-EVALZ Evaluation Board helps designers evaluate the features of the AADP7112 low noise, CMOS low LDO linear regulators. Using the ADP7112CB-EVALZ, simple device measurements, such as line and load regulation, dropout voltage, and ground current, can be demonstrated with just a single voltage source, load resistors, and a voltmeter or an ammeter. The ADP7112CB-EVALZ offers an input voltage range, 0mA to 200mA output current range, −40°C to +125°C operating temperature range, and an adjustable output voltage via two external resistors from any fixed output voltage option.

Features

  • 2.7V to 20V input voltage range
  • 0mA to 200mA output current range
  • ±0.8% output voltage initial accuracy
  • −40°C to +125°C operating temperature range
  • Adjustable output voltage via two external resistors from any fixed output voltage option

Related Products

ADP7112 Low Noise, CMOS LDO Linear Regulators

Analog Devices Inc. ADP7112 Low Noise, CMOS LDO Linear Regulators

For regulation of analog and mixed-signal circuits operating from 20V down to 1.2V rails.
