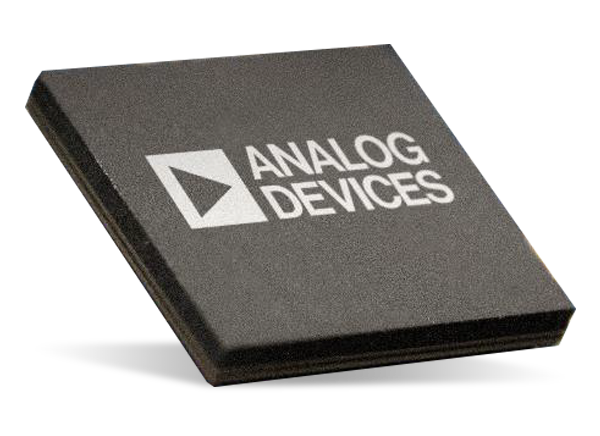

The ADHV4702-1 is ideal for forcing a voltage in precision bias and control applications. Available in a 12-lead, 7mm × 7mm lead frame chip scale package (LFCSP) with an exposed pad (EPAD), the ADHV4702-1 is compliant to international electrotechnical commission (IEC) 61010-1 creepage and clearance standards.
The copper EPAD provides a low thermal resistance path to improve heat dissipation. The EPAD also offers high voltage isolation, allowing it to be safely connected to a 0V ground plane regardless of VCC or VEE voltages. The ADHV4702-1 has an operational industrial temperature range of −40°C to +85°C.
