Amphenol Sine Systems ecomate® RSSM IP69K Circular Metal Connectors

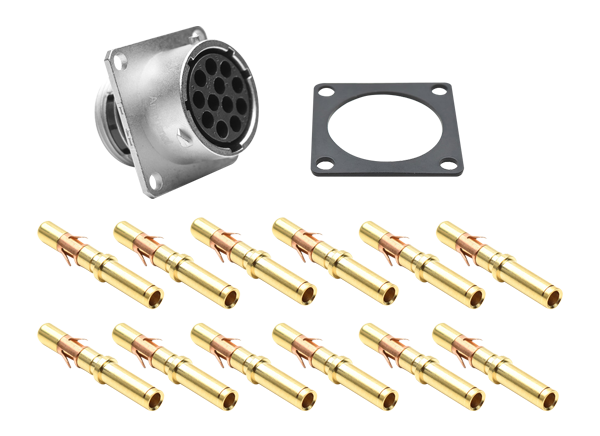

Amphenol Sine Systems’ ecomate® RSSM (Rugged Superior Seal Metal) series of circular metal connectors match all the specifications of the ecomate® RM series with the addition of Superior Seals (+125°C) which increase the IP ratings to IP67/69K (in mated condition). ecomate® RSSM Plugs can only mate with ecomate® RSSM Receptacles to ensure an IP69K rating. Contacts are available in machined or PCB (loose piece/bagged) or stamped and formed (reels) options. The Amphenol Sine Systems RSSM can be shared with the ecomate® Aquarius™, Aquarius™ Fathom Lock, and RM series. The connectors are ideal in circular, rugged, superior seal, and metal connector industrial applications. Available in 8 shell sizes and 28 insert arrangements.
Features
- 8 shell sizes/28 insert arrangements
- Features superior seals (+125°C)
- MIL-DTL-26482-based Design
- Up to 45A/600V
- 30AWG to 8AWG wire range
- Circular bayonet coupling system
- IP67/69K in mated condition
- Zinc alloy housings
Applications
- Factory Automation
- Industrial
- Heavy Equipment
- Heavy Duty
- Transportation
- Entertainment/lighting markets
- On-Machine
- Robotics
- Rail transit
- EV bus/trucks
- I/O modules
- Servo motors
- Servo drives
- Programmable logic controllers (PLC)
- HMI/CNC
