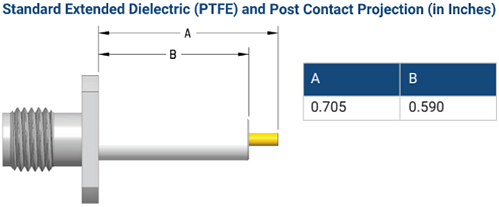

Amphenol RF SMA Panel-Mount Receptacles offer superior VSWR performance up to 18GHz and come in 2-hole and 4-hole flange configurations. These receptacles include a stainless steel body with passivated or gold finish. The termination option includes post contacts with extended polytetrafluoroethylene (PTFE) insulators as well as a solder cup, tab, and slotted contacts. The series operates in a -65°C to +105°C temperature range and offers 50Ω impedance and 5000MΩ insulation resistance. Amphenol RF SMA Panel-Mount Receptacles are ideal for use in attenuators, couplers, detectors, microwave filters, solid-state switches, and RF amplifiers.
2-hole and 4-hole flanges configurations
Stainless steel, passivated, or gold-plated body
Beryllium copper and gold-plated contacts
Power dividers and combiners
Receivers and transceivers
DC to 18GHz frequency range
1.15:1 maximum VSWR (except solder cup)
2mΩ contact resistance
5000MΩ insulation resistance
-65°C to +105°C operating temperature range
Amphenol RF SMA Connectors
PCB- and cable-mount connectors plus SMA adapters, terminators, attenuators, and cable assemblies.
