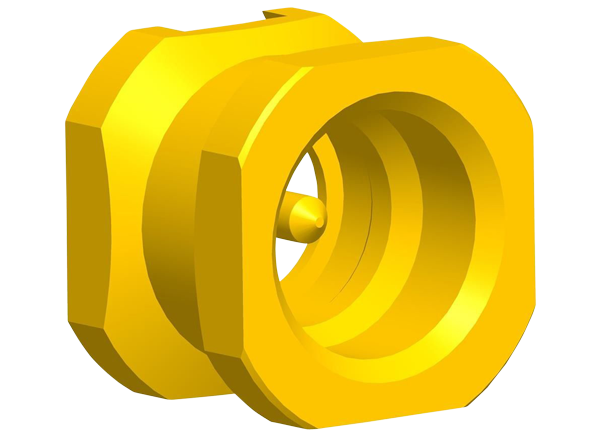

Amphenol RF PSMP Board-to-Board Solutions

Amphenol RF PSMP Board-to-Board Solutions feature a connector series designed for board-to-board applications that require high power. The connectors utilize a three-piece design with 12.6mm minimum board spacing. This allows PSMP connectors to provide maximum flexibility for high-density board spacing. The series is especially ideal for use in blind-mate situations. The connectors provide high-frequency operation up to 10GHz and 200W at 2.2GHZ continuous power. PSMP Board-to-Board Solutions are ideal for use in a variety of applications, including base stations, radios, filters, amplifiers, and handheld radios.


  • High-frequency operation up to 10GHz
  • 200W at 2.2GHz continuous power
  • 12.6mm minimum board spacing
  • ±1mm axial misalignment
  • Snap-on coupling
  • 50Ω impedance
  • 480Vrms working voltage
  • -65°C to +165°C temperature range


  • Base stations
  • Radios
  • Filters
  • Amplifiers
  • Handheld radios


Published: 2015-12-16 | Updated: 2022-03-11
