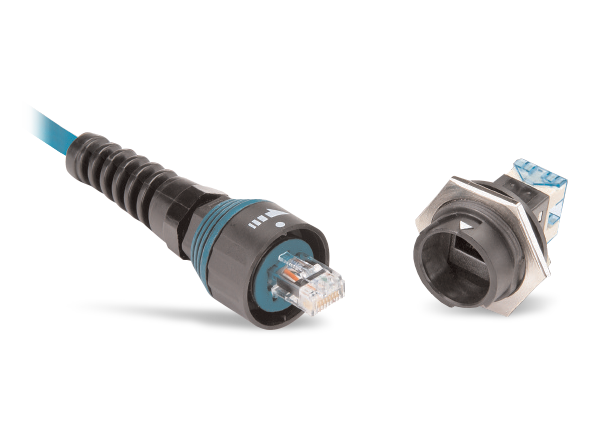

Amphenol Alden PL-1300EN-V Pulse-Lok® Ethernet Connectors

Amphenol Alden PL-1300EN-V Pulse-Lok® Industrial Ethernet Connectors provide an audible, tactile, and visual mating confirmation with mechanical cable strain relief plug protection. These RJ45 ethernet connectors feature a Pulse-Lok® mating action and positive mating feedback to confirm continuity. The IP67 rated PL-1300EN-V connectors are engineered for harsh environments. These connectors accept a variety of standard RJ-45 components and are compatible with different standard cable types. The PL-1300EN-V connectors offer optional Electro-Magnetic Interference (EMI)/ Radio Frequency Interference (RFI) shielding and operate within a temperature range of -20°C to +105°C.


  • Pulse-Lok® auto-latch/quick-release mechanism confirms continuity in critical surgical applications
  • 6 standard color combinations
  • Proprietary keying protects against being copied or mated with the wrong connector
  • Custom configurations including passive and active devices for coding or limiting catheter usage
  • Overmolded strain relief
  • Single or double-ended
  • Waterproof (IP67 rated)
  • EtO and gamma sterilizable
  • Chemical resistant housing
  • Up to 5,000 mating cycles (with standard contacts)
  • Factory terminated and overmolded cable assemblies for enhanced flex and strain relief


  • Industrial
  • Commercial
  • Residential
  • Harsh Environments


  • Electrical
    • RJ-45 connection category
    • 8 poles
    • 24AWG/26AWG maximum wire gauge
    • 150VAC maximum operating voltage
    • 1.5A maximum operating current at +25°C
    • 1000VAC dielectric withstanding voltage
    • 500mΩ insulation resistance
    • Cat 3, 5, 5e, and 6 TIA categories
    • Shielded or non-shielded, dome or flex strain relief types
  • Materials
    • UL 94V-0 Valox connector housing
    • UL1863, polycarbonate core connector
    • UL 94V-0 coupler
    • Phosphor bronze contacts
  • Mechanical
    • 5K mating cycles
    • Mating force
      • 16.5lbs. maximum to mate
      • 3.5lbs. maximum to un-mate
      • 50lbs. minimum for unintended extraction
      • 18.5lbs. minimum backshell withdrawal
  • Environmental
    • -20°C to +105°C operating temperature
    • IP67 moisture resistance (mated)
    • Gamma and EtO sterilizable
    • Common or cleaning solvent chemical resistance
