Amphenol Commercial Single Pair Ethernet (SPE) IP20 Connectors

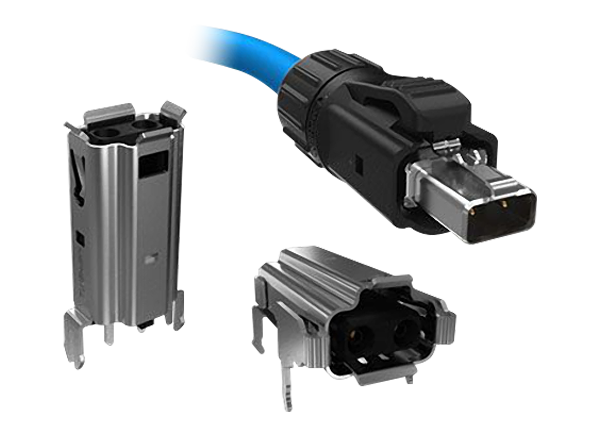

Amphenol Commercial Single Pair Ethernet (SPE) IP20 Connectors bring direct Ethernet connectivity to peripheral devices like sensors, actuators, and vision system cameras that operate at speeds up to 1Gb/s. Robust right-angle and vertical PCB-mount SPE jacks mate to field-terminable plugs, resulting in a complete shielded interface with metal latching features. Mechanically robust and secure latching with 360° shielding delivers excellent performance in harsh environments. Amphenol Commercial SPE IP20 Connectors feature current handling up to 4A, support Power over Data Link (PoDL) capability up to 1km, and are fully compatible with IEC 63171-6 interconnects from other authorized vendors. The series eliminates slow and complex fieldbus protocols and connections by simplifying and standardizing existing and new industrial network systems. SPE eliminates the need for protocol conversion gateways.

Features

Two-way 600MHz data transmission
2 contacts and 2-wire cable for SPE
4A current rating
Mated pair maintains 360° shielding for the signal contacts

PCB mount jack shields have robust integrated solder tails with available board-locks
Positive latching with robust thumb-actuated metal latch
Insulation displacement termination plugs (IDC)

Applications

Medical
- Healthcare
- Medical equipment
Automotive
- Traffic control
- Monitoring systems

Data
Industrial and instrumentation
- Industrial Internet of Things (IIoT)
- Factory/process automation
- Robotics
- Building automation

Specifications

60V_DC maximum voltage rating
4A current rating (per IEC 60512, Test 5b)
20mΩ maximum contact resistance (per IEC 60512-2-1, Test 2a, Method A)

100mΩ maximum shielding resistance (per IEC 60512-2-1, Test 2a, Method A)
500MΩ minimum insulation resistance at 500V_DC (per IEC 60512-3-1, Test 3a, Method A)
