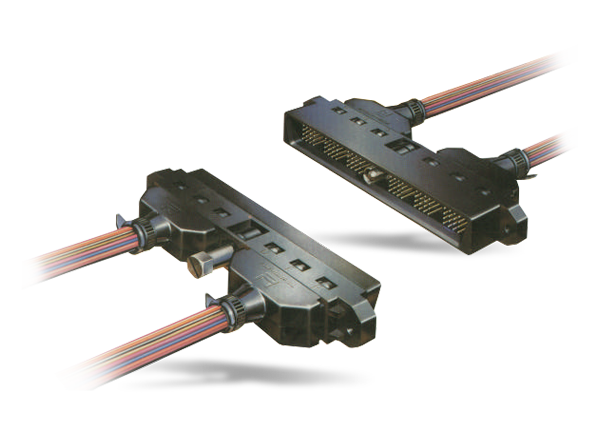

Amphenol Aerospace LMD Modular Connectors offer design flexibility in the assembly of wire harnesses used in instrumentation and avionic control environments. LMD connectors consist of a housing, modules, and contacts. Housings are constructed using either a lightweight, high-performance composite material for EMI shielding or a lightweight, white thermoplastic nylon material with increased solvent resistance. Amphenol Aerospace LMD connectors feature four standard modules with contact arrangements of 1 #8, 4 #16, 9 #20, or 16 #22. The linear module design can be used in rack-and-panel or cable-to-cable applications.
To supplement the LMD connectors, Amphenol Aerospace offers the LMS in-line splice connector, an interconnect that incorporates the LMD modules and contacts.
Consists of a housing, modules, and contacts
Lightweight housings are offered in two materials
High-performance composite material for EMI shielding
Thermoplastic nylon material with increased solvent resistance
Four standard modules offer these contact arrangements: 1 #8, 4 #16, 9 #20, 16 #22
Modules are available in sealed and unsealed versions
Linear module design may be used for rack-and-panel or cable-to-cable applications
Allows for a variety of circuit configurations
Permits ease of circuit upgrading
Military, aerospace, and commercial air avionics (airframe wiring)
