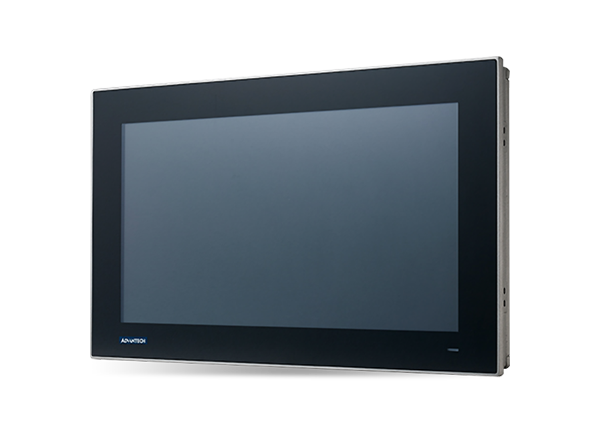

Advantech FPM-215W 15.6" Industrial Monitor
Advantech FPM-215W 15.6" Industrial Monitor is a WXGA TFT LED LCD with a true-flat touchscreen. This industrial monitor features P-CAP touch control, a direct HDMI port, and 16:9 widescreen aspect ratio that increases viewing by 40%. The FPM-215W monitor supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS. Advantech FPM-215W 15.6" Industrial Monitor has a slim design that enables easy installation and lockable I/O connectors.
Features
- WXGA TFT LED LCD with true-flat touchscreen
- P-CAP touch control
- Reliable glass surface
- Slim design that enables easy installation
- Mount Options
- Panel
- Wall desktop
- VESA arm
- Robust system with die-casting aluminum chassis
- IP66-rated aluminum alloy front bezel
- Lockable I/O connectors
Specifications
- 16:9 widescreen aspect ration that increases viewing area by 40%
- 10-point multi-touch control via USB interface in Windows 7/8/10 OS
- 16.7M maximum color
- 160/160° viewing angle (H/V°)
- 300cd/m2 luminance
- 50000hrs backlight life
- 500:1 contrast ratio
- 0°C to +50°C operating temperature range
- 16.52" x 10.59" x 2.21" dimensions
