Acconeer A111 Pulsed Coherent Radars

Acconeer A111 Pulsed Coherent Radars (PCRs) are based on patented sensor technology with pico-second time resolution and measure absolute distance with mm accuracy up to a range of 2m and with a configurable update rate. These 60GHz radar system modules are fully integrated into a small 29mm2 package and optimized for high precision and ultra-low power. This one-package solution features integrated baseband, RF front-end, and antenna in package (AiP). Acconeer A111 Pulsed Coherent Radars offer easy integration into any portable battery-driven device.

Features

  • Fully integrated sensor
    • 60GHz PCR
    • Integrated baseband, RF front-end, and AiP

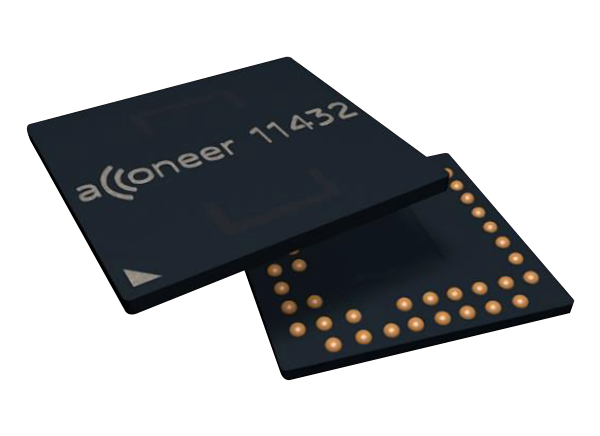

    • 5.5mm x 5.2mm x 0.88mm fcCSP, 0.5mm pitch
  • Accurate distance ranging and movements
    • Measures absolute range up to 2m
      • Absolute accuracy in mm
    • Relative accuracy in µm
    • Possible to recognize movement and gestures for several objects
    • Support continuous and single sweep mode
    • HPBW of 80° (H-plane) and 40° (E-plane)
  • Easy integration
    • One-chip solution with integrated baseband and RF
    • Can be integrated behind plastic or glass without the need for physical aperture
    • Single reflowable component
    • 1.8V single power supply, enables with power on reset (PoR)
    • Clock input for crystal or external reference clock, 20MHz to 80MHz
    • SPI interface for data transfer, up to 50MHz SPI clock support
    • INTERRUPT support

Applications

  • High precision distance measurements with mm accuracy and high update rate
  • Proximity detection with high accuracy and the possibility to define multiple proximity zones
  • Motion detection, Speed detection
  • Enables material detection
  • High precision object tracking, enabling gesture control
  • High precision tracking of 3D objects
  • Monitor vital life signs such as breathing and pulse rate

Block Diagram

Block Diagram - Acconeer A111 Pulsed Coherent Radars
