ABLIC S-82D1A Battery Protection ICs
ABLIC S-82D1A Battery Protection ICs are for lithium-ion / lithium polymer rechargeable batteries with temperature protection circuits, high-accuracy voltage detection circuits, and delay circuits. The temperature protection is possible by connecting an NTC thermistor to the dedicated connection pin. These ICs feature a charge-discharge control function, discharge overcurrent control function, and power-down function. The S-82D1A battery protection ICs include high-withstand voltage, low current consumption, and 0V battery charge. These battery protection ICs operate at -40°C to 85°C temperature range. Typical applications include the lithium-ion rechargeable battery pack and lithium polymer rechargeable battery pack.
Features
- High-accuracy temperature protection circuit by an external NTC thermistor:
- 40°C to 85°C high-temperature charge-discharge inhibition temperature
- 40°C to 85°C high-temperature charge inhibition temperature
- -40°C to 10°C low-temperature charge inhibition temperature
- -40°C to 10°C low-temperature charge-discharge inhibition temperature
- High-accuracy voltage detection circuit:
- Overcharge detection voltage
- Overcharge release voltage
- Over-discharge detection voltage
- Over-discharge release voltage
- Load short-circuiting detection voltage
- Charge overcurrent detection voltage
- Detection delay times are generated only by an internal circuit
- Charge-discharge control function
- Discharge overcurrent control function
- Power-down function
- High-withstand voltage
Applications
- Lithium-ion rechargeable battery pack
- Lithium polymer rechargeable battery pack

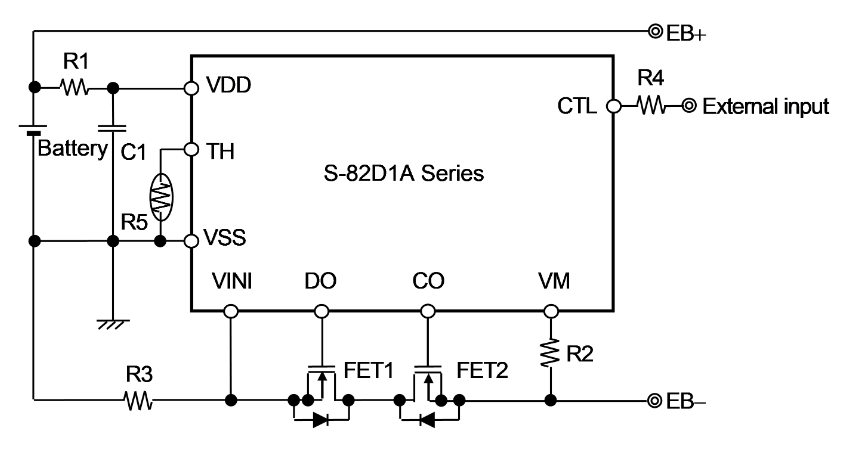

Block Diagram
Protection Circuit
Associated Product
ABLIC S-82P1A & S-82P1B Battery Protection ICs
Include high-accuracy voltage detection circuits and delay circuits.
